Endovascular

Self-expanding stent Jaguar with delivery system

Medical use
Peripheral stenting
Basic UDI-DI
5901297JAGUARUY

Self-expanding stents manufactured by the BALTON Company are made of Nitinol wire (alloy of nickel and titanium).

They are designed for the use as intravascular prostheses helping to maintain the patency of vessels.

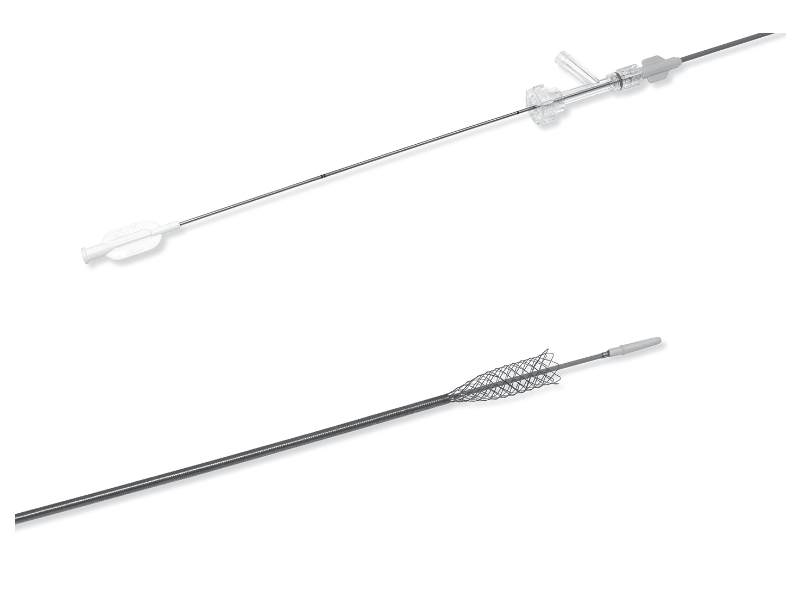

A stent is placed at the end of the delivery system. After being released from the delivery system, the stent opens up, taking the form of a cylinder.

The delivery system consists of a movable part and an immovable part. The stent is released by sliding the movable part off from the distal end of the immovable part of the delivery system. The markers indicate the nominal stent length.

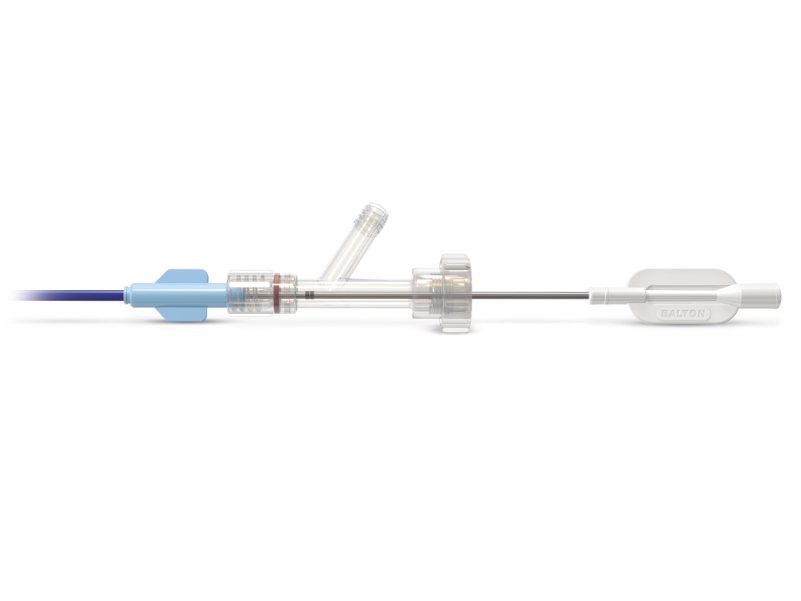

The delivery system has two canals. The central canal is used to introduce the guide wire on which the delivery system is introduced. The other one, the external canal, constitutes the space separating the immovable part containing the stent, from the movable part. The unscrewing of the handwheel of the “Y” connector enables starting to slide off the movable part, thus releasing the stent.

As nitinol is faintly visible under scopy, platinum markers are placed on both stent ends to facilitate easier deployment during procedure. The delivery system is flexible and bendable, which enables implantation even in tortuous vessels. The rounded and flexible tip of the delivery system is atraumatic for the vessel wall.

During stent implantation it is possible to correct the location of partly expanded stent in the vessel. The delivery system allows stent reintroduction into the movable part. It is feasible when not more than half the stent length has expanded. Information about it is provided by the single mark on the steel tube that constitutes the immovable part during stent implantation. That single mark represents the limit which, when exceeded, shows that it is no longer possible to coil the stent again. The double mark represents the place in which the stent was completely released from the delivery system and expanded.


Intended purpose:

Jaguar, the nitinol self-expanding stent, is intended for dilating de novo or restenotic atherosclerotic lesions in peripheral arteries with reference vessel diameters between 4 mm and 14 mm.

    Technical data overview

    Material Nitinol wire
    MRI MR Conditional
    Nominal stent diameters  4-10 mm
    Nominal stent lengths  20-150 mm
    Standard delivery system working length 80 cm, 120 cm
    Delivery system 6F
    Available guidewires 0.035” or 0.018”
    Delivery system  OTW with hydrophilic coating

    Available versions

    Reference: Stent
    diameter
    [mm]    		 Stent
    length
    [mm]    		 Use with
    introducer
    [F]    		 Use with
    guidewire
    [inch]    		 Delivery system
    working length
    [cm]
    ZNSJ4x2018120 4 20 6 0.018 120
    ZNSJ4x3018120 4 30 6 0.018 120
    ZNSJ4x4018120 4 40 6 0.018 120
    ZNSJ4x6018120 4 60 6 0.018 120
    ZNSJ4x8018120 4 80 6 0.018 120
    ZNSJ4x10018120 4 100 6 0.018 120
    ZNSJ4x12018120 4 120 6 0.018 120
    ZNSJ4x2035120 4 20 6 0.035 120
    ZNSJ4x3035120 4 30 6 0.035 120
    ZNSJ4x4035120 4 40 6 0.035 120
    ZNSJ4x6035120 4 60 6 0.035 120
    ZNSJ4x8035120 4 80 6 0.035 120
    ZNSJ4x10035120 4 100 6 0.035 120
    ZNSJ4x12035120 4 120 6 0.035 120
    ZNSJ5x2018120 5 20 6 0.018 120
    ZNSJ5x3018120 5 30 6 0.018 120
    ZNSJ5x4018120 5 40 6 0.018 120
    ZNSJ5x6018120 5 60 6 0.018 120
    ZNSJ5x8018120 5 80 6 0.018 120
    ZNSJ5x10018120 5 100 6 0.018 120
    ZNSJ5x12018120 5 120 6 0.018 120
    ZNSJ5x15018120 5 150 6 0.018 120
    ZNSJ5x2035120 5 20 6 0.035 120
    ZNSJ5x3035120 5 30 6 0.035 120
    ZNSJ5x4035120 5 40 6 0.035 120
    ZNSJ5x6035120 5 60 6 0.035 120
    ZNSJ5x8035120 5 80 6 0.035 120
    ZNSJ5x10035120 5 100 6 0.035 120
    ZNSJ5x12035120 5 120 6 0.035 120
    ZNSJ5x15035120 5 150 6 0.035 120
    ZNSJ6x20356120 6 20 6 0.035 120
    ZNSJ6x30356120 6 30 6 0.035 120
    ZNSJ6x40356120 6 40 6 0.035 120
    ZNSJ6x60356120 6 60 6 0.035 120
    ZNSJ6x80356120 6 80 6 0.035 120
    ZNSJ6x100356120 6 100 6 0.035 120
    ZNSJ6x120356120 6 120 6 0.035 120
    ZNSJ6x150356120 6 150 6 0.035 120
    ZNSJ7x20356120 7 20 6 0.035 120
    ZNSJ7x30356120 7 30 6 0.035 120
    ZNSJ7x40356120 7 40 6 0.035 120
    ZNSJ7x60356120 7 60 6 0.035 120
    ZNSJ7x80356120 7 80 6 0.035 120
    ZNSJ7x100356120 7 100 6 0.035 120
    ZNSJ7x120356120 7 120 6 0.035 120
    ZNSJ7x150356120 7 150 6 0.035 120
    ZNSJ8x20356120 8 20 6 0.035 120
    ZNSJ8x30356120 8 30 6 0.035 120
    ZNSJ8x40356120 8 40 6 0.035 120
    ZNSJ8x60356120 8 60 6 0.035 120
    ZNSJ8x80356120 8 80 6 0.035 120
    ZNSJ8x100356120 8 100 6 0.035 120
    ZNSJ8x120356120 8 120 6 0.035 120
    ZNSJ8x150356120 8 150 6 0.035 120
    ZNSJ9x20356120 9 20 6 0.035 120
    ZNSJ9x30356120 9 30 6 0.035 120
    ZNSJ9x40356120 9 40 6 0.035 120
    ZNSJ9x60356120 9 60 6 0.035 120
    ZNSJ9x80356120 9 80 6 0.035 120
    ZNSJ9x100356120 9 100 6 0.035 120
    ZNSJ9x120356120 9 120 6 0.035 120
    ZNSJ9x150356120 9 150 6 0.035 120
    ZNSJ10x20356120 10 20 6 0.035 120
    ZNSJ10x30356120 10 30 6 0.035 120
    ZNSJ10x40356120 10 40 6 0.035 120
    ZNSJ10x60356120 10 60 6 0.035 120
    ZNSJ10x80356120 10 80 6 0.035 120
    ZNSJ10x100356120 10 100 6 0.035 120
    ZNSJ10x120356120 10 120 6 0.035 120
    ZNSJ10x150356120 10 150 6 0.035 120
