Endovascular

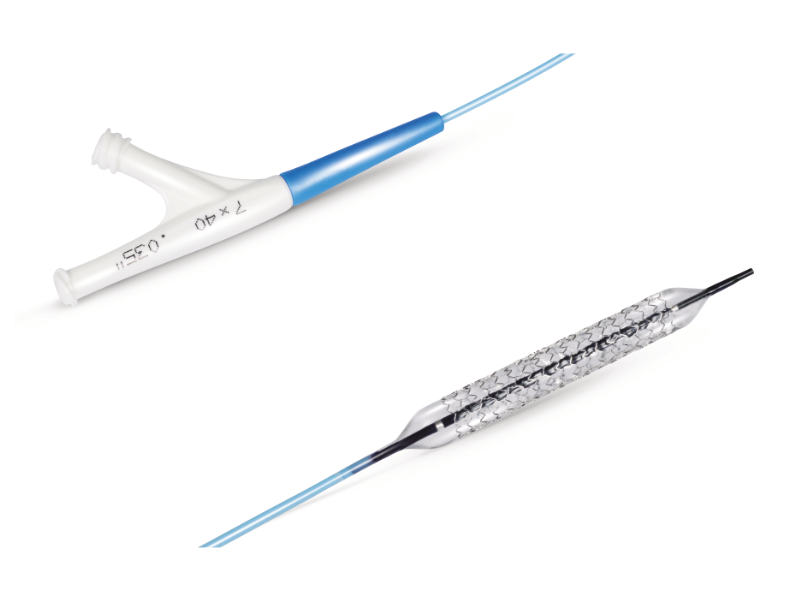

Cobalt-chromium stent for peripheral vessels NEPTUN C with delivery system OTW

Medical use
Peripheral stenting
Basic UDI-DI
5901297NEPTUNC7Q

Cobalt-Chromium Peripheral Stent, Neptun C OTW Over the Wire delivery system type is intended for dilating de novo or restenotic atherosclerotic lesions in peripheral arteries.

The stent platform is made of cobalt-chromium alloy L605. The stent has cylindrical, segmented design with repeating elements.

The delivery system for Neptun C OTW consists of:

  • Y-hub;
  • dual lumen polyamide tube (first lumen for guidewire, second for filling balloon);
  • olyamide balloon.

The delivery system has two radiopaque markers to identify cylindrical portion of the balloon, that enables the stent positioning within the lesion.

The stent is delivered to the treated lesion, expanded by inflating the balloon, and then remains in the patient's body as a permanent implant, which, thanks to its radial force, constitutes a peripheral vessel scaffold.

Intended purpose:

Cobalt-Chromium Peripheral Stent, Neptun C OTW Over the Wire delivery system type is intended for dilating de novo or restenotic atherosclerotic lesions in peripheral arteries.

    Technical data overview

    WITH DELIVERY SYSTEM OVER THE WIRE (OTW)

    Stent material cobalt-chromium alloy (L605)
    Radiopacity very good
    MRI MR Conditional
    Radial force    excellent
    Pushability and trackability                      very good
    Crossing profile         low
    Nominal pressure                          6 atm
    Delivery system length                    110 cm
    Delivery system type                Over The Wire (OTW)






    Available versions

    WITH DELIVERY SYSTEM OVER THE WIRE (OTW)

    Reference: Nominal
    stent diameter
    [mm]    		 Nominal
    stent length
    [mm]    		 Use with
    guidewire
    [inch]    		 Use with
    introducer
    [F]    		 Catheter
    length
    [cm]
    C E
    ZSTPCOTW 4xCE110 4 16, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100 0.018
    0.025    		 5 110
    ZSTPCOTW 4xCE110 4 16, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100 0.035 6 110
    ZSTPCOTW 5xCE110 5 16, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100 0.025 5 110
    ZSTPCOTW 5xCE110 5 16, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100 0.035 6 110
    ZSTPCOTW 6xCE110 6 16, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100 0.025 5 110
    ZSTPCOTW 6xCE110 6 16, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100 0.035 6 110
    ZSTPCOTW 7xCE110 7 16, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100 0.035 6 110
    ZSTPCOTW 8xCE110 8 16, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100 0.035 6 110
    ZSTPCOTW 9xCE110 9 16, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100 0.035 6 110
    ZSTPCOTW 10xCE110 10 16, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100 0.035 7 110
    ZSTPCOTW 12xCE110 12 30, 35, 40, 45, 50, 60, 70, 80, 90, 100 0.035 8 110
