Urology

Catheter exchange kit

Medical use
Nephrostomy
Basic UDI-DI
5901297INTRODUCERSF7

The kit for nephrostomy catheter exchange is intended for nephrostomy catheter exchange and short-term urinary diversion and drainage when natural urine outflow from the kidney is not possible.

Kit consists of:

  • catheter with a clamp;
  • dilator (radiopaque and with atraumatic tip);
  • dilator with peel away sheath (radiopaque and with atraumatic tip);
  • guidewire;
  • fixing collar;
  • band clip.

Polyurethane, radiopaque catheter is available in two configurations: with a pigtail curve with numerous holes inside the loop or a straight tip with holes located spirally along the axis. The distal tip of the catheter is atraumatic. The catheter has depth marks.

Intended purpose:

The kit for nephrostomy catheter exchange is intended for nephrostomy catheter exchange and short-term urinary diversion and drainage when natural urine outflow from the kidney is not possible.

    Available versions

    Reference: Catheter
    size
    [F]    		 Catheter
    length
    [cm]    		 Dilator with sleeve
    to peel away size
    [F]    		 Dilators
    size
    [F]
    ZWK9F 9 45 10 7
    ZWK12F 12 45 13 10
    ZWK14F 14 45 15 13

    Set elements

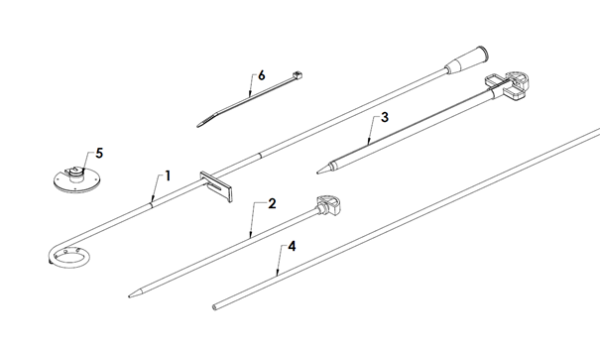

    • Elements of the kit for nephrostomy catheter exchange
      1. Pigtail type or straight catheter with a clamp (with pigtail catheter as an example)
      2. Dilator
      3. Dilator with peel-away sheath
      4. Guidewire
      5. Fixing collar
      6. Band clip
