Phlebology

Set for venous insufficiency treatment, FLEBOGRIF

Medical use
Ablation of lower limb varicose veins
Basic UDI-DI
9548D951785-DSF

The set for venous insufficiency treatment, Flebogrif is intended for mechanochemical ablation of lower extremity superficial truncal veins.

The set Flebogrif consists of:

  • catheter;
  • needle;
  • guidewire;
  • introducer sheath;
  • dilator;
  • three-way stopcock;
  • syringes.

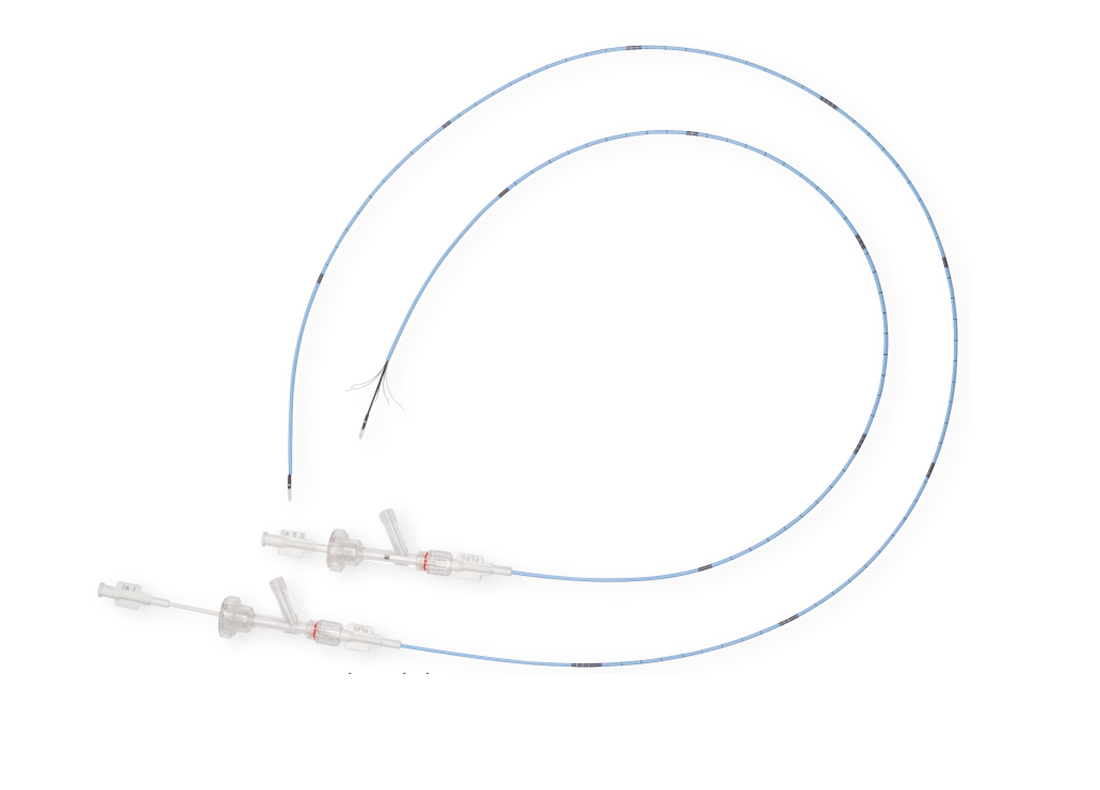

The catheter consists of two coaxially cooperating parts:

  • internal - designed to be a lumen for the guidewire and to deliver the foamed sclerosant;
  • external - with length markers every 1 cm (starting at 10 cm from the distal end).

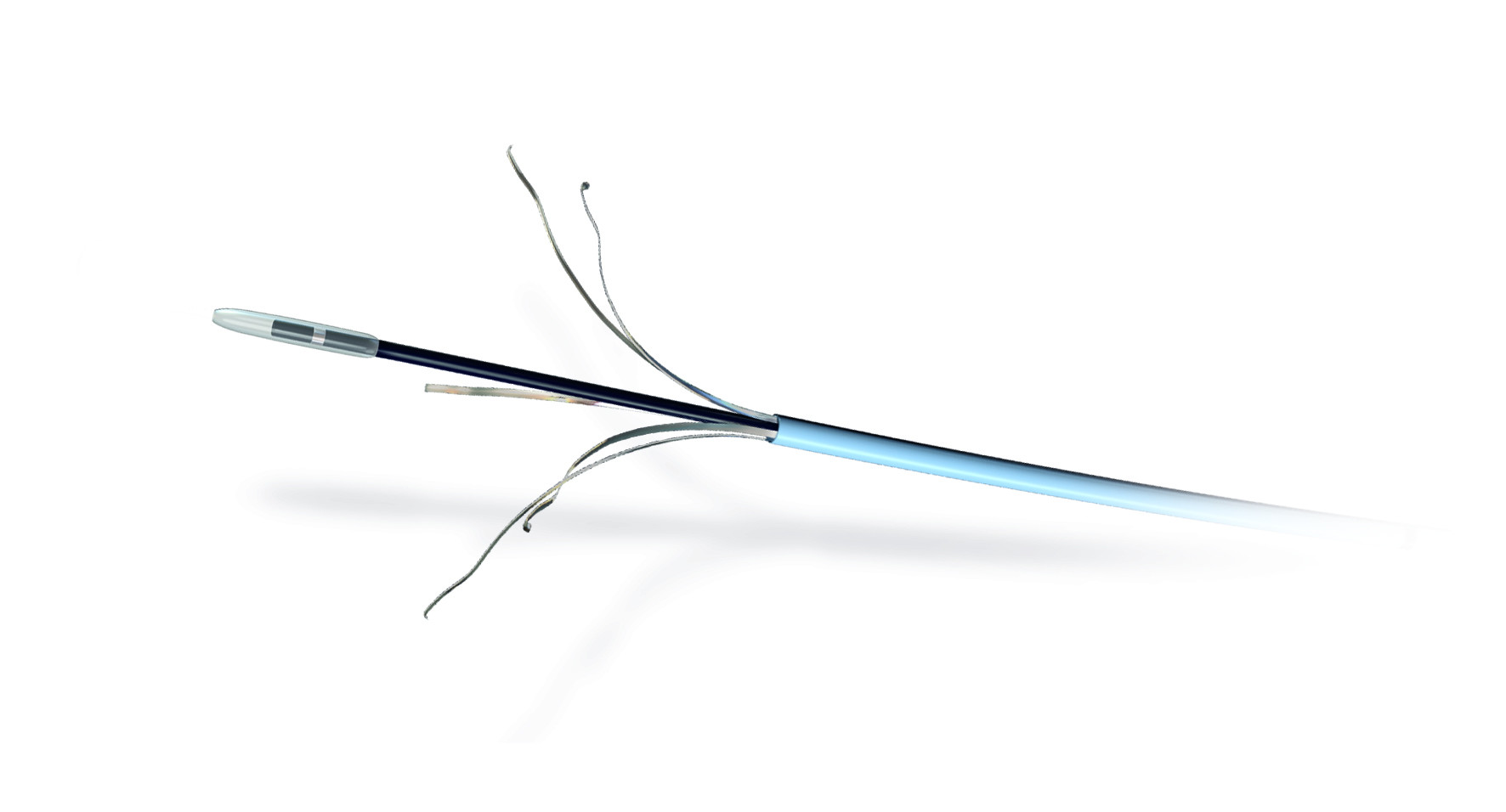

The catheter is equipped with a cutting elements consisting of five retractable, branching arms arranged circumferentially designed to scratch the inner wall of the vein.

Intended purpose:

The Set for Venous Insufficiency treatment, Flebogrif is intended for mechanochemical ablation of lower extremity superficial truncal veins.

Quick view
  1. Technical data overview
  2. Available versions
  3. Set elements
  4. Related products

Technical data overview

Catheter diameter 6 F (2.08 mm)
Catheter length 60 cm or 90 cm
Catheter dead space volume 0.8 ml for 60 cm catheter;
1 ml for 90 cm catheter
Needle size 18 G
Needle length 7 cm
Guidewire diameter 0.035’’
Guidewire length 150 cm for 60 cm catheter;
180 cm for 90 cm catheter
Guidewire coating PTFE (polutetrafluoroethylene)
Introducer sheath with dilator diameter  6 F (minimum ID 2.18 mm)
Syringe volume 5 ml
Syringe connector type luer-lock


Available versions

Catalogue No. Catheter size
[F] 		 Catheter length
[cm]
FLE6F60 6 90
FLE6F90 6 60


Set elements

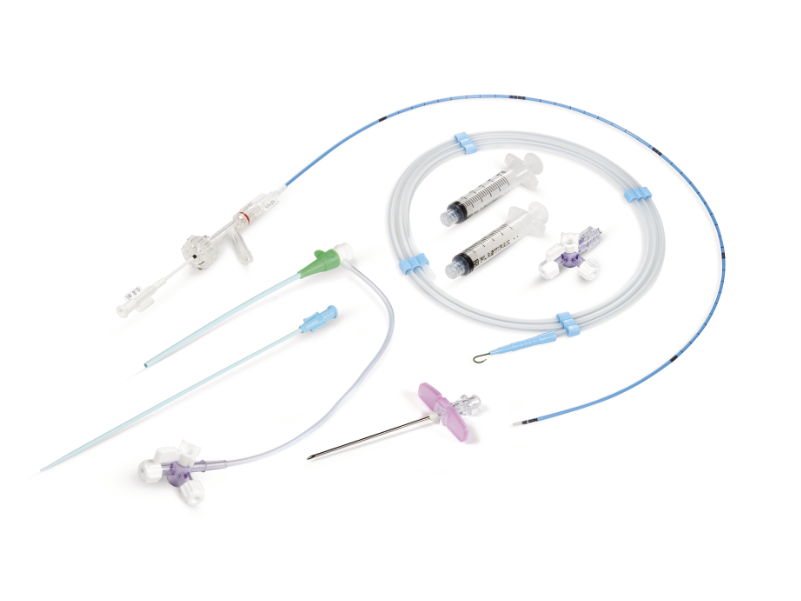

  • Components of the Set for venous insufficiency treatment Flebogrif
    1. Flebogrif catheter 6 F
    2. Needle 18 G
    3. J-type guidewire 0.035”
    4. Introducer sheath 6 F
    5. Dilator
    6. Three-way stopcock
    7. Luer-lock syringe 5 ml 2 pcs
  • Flebogrif catheter
    1. Cutting elements
    2. Inner shaft
    3. Outer sheath
    4. Soft tip
    5. Length markers
    6. Size information
    7. Clamping knob (Y connector)
    8. Inner shaft hub with the dead space information
    9. Sclerosant injection port (female luer-lock connector)
    10. Flushing port (female luer-lock connector)

    L – Effective (usable) length
