Anaesthesiology

Large vessel catheterization kits with single lumen cannula

Medical use
Central venous access
Basic UDI-DI
5901297CVCEZ

The large vessel catheterization kit is intended for short-term use in a clinical setting for the following purposes:

• Administration of fluids and medicinal products (infusion therapy);
• Central venous pressure (CVP) monitoring;
• Venous blood sampling;
• Delivery of parenteral nutrition.

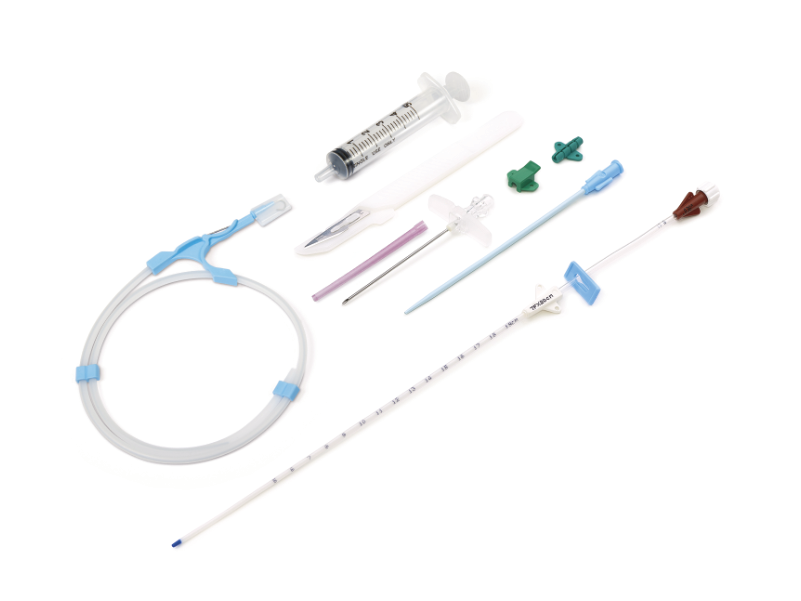

The Central Venous Catheter Kit consists of:

  • catheter;
  • needle;
  • guidewire in dispenser;
  • dilatator;
  • scalpel;
  • syringe;
  • butterfly with clamp;
  • luer lock caps (in a number corresponding to the number of lumens).

The catheters has a non-communicating polyurethane, radiopaque shaft with printed centimeter insertion depth marks. They are available in single, double triple and quadruple lumen version. Each lumen branches at the hub into a labeled extension tube for infusion of fluids, equipped with a flow clamp and luer lock port and has holes for each lumen near the atraumatic tip. Separate lumens allow to infuse and draw fluids simultaneously.

Intended purpose:

The large vessel catheterization kit is intended for short-term use in a clinical setting for the following purposes:

• Administration of fluids and medicinal products (infusion therapy);
• Central venous pressure (CVP) monitoring;
• Venous blood sampling;
• Delivery of parenteral nutrition.

    Available versions

    Reference: Catheter
    size
    [F]    		 Catheter
    length
    [cm]    		 Dilator
    size
    [F]    		 Dilator
    length
    [cm]    		 Needle
    size
    [G]    		 Needle
    length
    [mm]    		 Guidewire
    size
    [inch]    		 Guidewire
    length
    [cm]    		 Guidewire
    type
    ZKDN2F8 2 8 - - 22 38 0.014 35 straight
    ZKDN3F8 3 8 4 10 20 38 0.022 40 “J”
    ZKDN3F10 3 10 4 10 20 38 0.022 40 “J”
    ZKDN3F15 3 15 4 10 20 38 0.022 50 “J”
    ZKDN3F20 3 20 4 10 20 38 0.022 60 “J”
    ZKDN4F10 4 10 5 12 19 50 0.027 50 “J”
    ZKDN4F15 4 15 5 12 19 50 0.027 50 “J”
    ZKDN4F20 4 20 5 12 19 50 0.027 60 “J”
    ZKDN5F10 5 10 6 12 18 70 0.035 50 “J”
    ZKDN5F15 5 15 6 12 18 70 0.035 50 “J”
    ZKDN5F20 5 20 6 12 18 70 0.035 60 “J”
    ZKDN6F15 6 15 7 12 18 70 0.038 50 “J”
    ZKDN6F20 6 20 7 12 18 70 0.038 60 “J”
    ZKDN7F15 7 15 8 12 18 70 0.038 50 “J”
    ZKDN7F20 7 20 8 12 18 70 0.038 60 “J”
    ZKDN7.5F20 7.5 20 8 12 18 70 0.038 60 “J”
    ZKDN8F15 8 15 9 12 18 70 0.038 50 “J”
    ZKDN8F20 8 20 9 12 18 70 0.038 60 “J”
    ZKDN9F20 9 20 10 12 18 70 0.038 60 “J”
    ZKDN10F20 10 20 10 12 18 70 0.038 60 “J”
